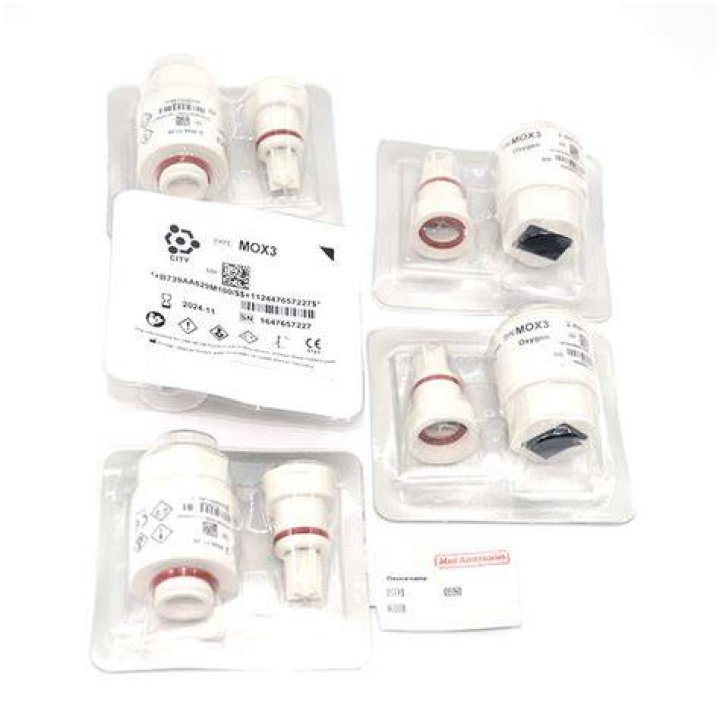

For the galvanic oxygen sensor, calibrate to room air (the time to 90% response is 15-20 seconds, so if it takes longer than 40-60 seconds to read 21%, change the sensor). Then expose to 100% oxygen and ensure it reads close. You may recalibrate at 100%, but it is not necessary with all monitors.

What is the ratio of oxygen to anesthetic agents in anesthesia machine?

Inhalation via nasal mask. Most commonly, nitrous oxide gas is delivered in a 70:30 mix with oxygen. The 2:1 ratio of nitrous oxide to oxygen is also used in medical anesthesia.

How is oxygen measured in an Anaesthetic machine?

oXygEN CoNCENTRATioN ANAlySERS The paramagnetic method is currently the most widely used in modern anaesthetic machines, however galvanic fuel cells and the polarographic electrode are found in older machines. These analysers measure the oxygen partial pressure in a gas sample but they display a percentage.

What oxygen percentage levels are Anaesthetic machines calibrated to?

They are usually connected to inspiratory limb. These require calibration with 100% oxygen and room air (21% oxygen) and have a response time of around 20 seconds with an accuracy of 3%.

How do you calibrate an O2 sensor?

To calibrate the sensor, follow the normal 2-point calibration procedure. -For the first point, push and hold the calibrate button on the sensor using a paper clip or LabQuest stylus. -Enter a value of 0 for this reading. -Release the button and take a second reading in air.

How much o2 is stored in a full e tank?

There are many different sizes of oxygen cylinders ranging from industrial to portable. However, the “E” tank is by far the most common. The “E” tank is a 3-foot tall aluminum tank that weighs about 8 pounds and carries anywhere from 2,200–3,000 PSI of compressed oxygen gas depending on the manufacturer.

How long should the anesthesia backup battery power last?

Anesthesia machines and ventilators revert to battery power, which may last from 30 to 90 minutes depending on device and manufacturer specifications.

How does an oxygen analyzers work?

An oxygen analyzer measures the para-magnetism of air. The air being measured for oxygen is filtered by passing it through a diffuser before. Then it is passed through the two chambers. One chamber attracts oxygen via its magnetic field, while the other chamber attracts air.

How often should an anesthesia machine be serviced?

Any machine with a rebreathing circuit must be inspected and serviced by an authorized anesthetic machine service provider annually. The Soda lime/Baralyme (CO2 absorbers) should be changed regularly; minimally this should occur at least once after every 12 hours of use.

What is an anesthesia gas machine?

Introduction The anesthesia gas machine is a device which delivers a precisely-known but variable gas mixture, including anesthetizing and life-sustaining gases. The anesthesia gas machine is also called the anesthesia workstation, or anesthesia delivery system.

How long does it take to calibrate an oxygen sensor?

There are two types: a galvanic type sensor (an older “plug in” type), and the paramagnetic. For the galvanic oxygen sensor, calibrate to room air (the time to 90% response is 15-20 seconds, so if it takes longer than 40-60 seconds to read 21%, change the sensor).

What is the working pressure of a hospital oxygen machine?

The hospital pipeline is the primary gas source at 50 psi, which is the normal working pressure of most machines. Cylinders – Oxygen is supplied at around 2000 psi (regulated to approximately 45 psi after it enters the machine). Oxygen flush is a “straight shot” from pipeline to common gas outlet (bypassing vaporizers and flowmeters), 35-75 L/min.

What are the requirements of an oxygen dispensing machine?

The machine must have at least one oxygen cylinder attached. The hanger yoke must be pin-indexed, have a clamping device that resists leaks, and contain a filter. It must have a check valve to prevent transfilling, and a cylinder pressure gauge.
