Haldex 4WD typically takes a front-wheel drive platform, such as the VW Golf, Audi A3, or Mercedes-Benz A Class, and converts the FWD system into all-wheel drive, normally through the use of electronic sensors and differentials to redirect power to the rear wheels.

How do I know if my Haldex is working?

Disengage the clutch and run up the engine to 3000 – 4000 rpm. Let the car roll to full stop. * If the coupling is working the car will stop in about half the distance in case 2 compared with case 1. * If there is no difference in the two cases there is a malfunction of the coupling.

How long does Haldex last?

Volkswagen recommends that you have a Haldex Oil Change done every 3 years, and keep in mind, if this scheduled maintenance is not complete, it could lead to your Powertrain Warranty becoming void.

What generation is my Haldex?

1: To know what system is equipped on a vehicle from 2012+, either physically inspect your Haldex unit or contact our sales staff with your VIN. If your Haldex looks like the one on the left, you have a Gen 4 system with a filter. If it looks like the one on the right, you have a Gen 5 system without a filter.

Why is Haldex bad?

Also, a fault against the Haldex system is that because it is front-drive based, under normal driving conditions you have the added weight of AWD, without the power delivery, cornering, or engine braking benefits of All-Wheel drive when wheel spin is absent.

How do I reset my Haldex?

Registered

1. ( 22) AWD -> Basic Settings -> Pump Prime for 30 seconds.
2. (22) AWD -> Output Tests -> Clutch Engaged/Disengaged 2 times for 30 seconds each. Ignition on, Engine off.
3. ( 22) AWD -> Clear codes (even if none are present)
4. (
5. Drive off, no launches for a few miles or so.

What happens if you dont Service Haldex?

Your 4-wheel drive system is designed to run with this oil specifically and, most importantly, it cannot run unlubricated. The Haldex pump provides oil pressure, which helps the clutches activate rear wheel drive when required. Without this, you could get into trouble off-road.

What vehicles use Haldex AWD?

Vehicles equipped with Haldex AWD

• Audi A3 quattro.
• Audi S3.
• Audi RS3.
• Audi Q3.
• Audi TT quattro.
• SEAT León 4.
• SEAT Altea Freetrack 4.
• SEAT Alhambra 4.

Does the Haldex pump run all the time?

The pump should run all the time to lubricate the haldex. The various sensors tell the valves to open to engage the clutch plates.

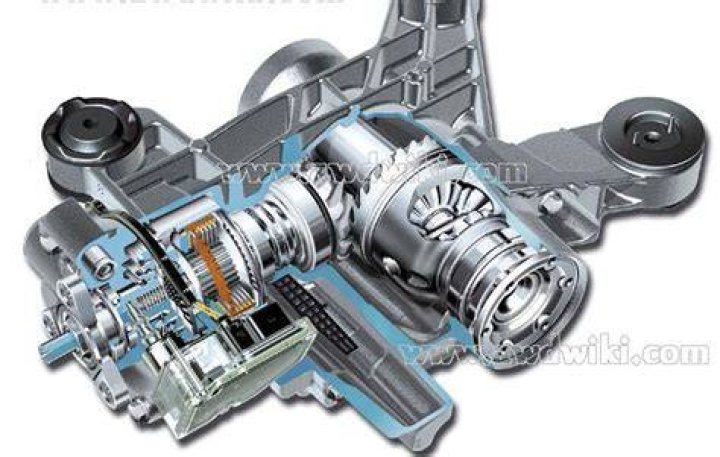

What is a Haldex clutch?

The term “Haldex coupling” refers to a multi-plate clutch according to the design of the Swedish company with the same name. In SEAT cars with permanent all-wheel drive it permits a variable power distribution between the front and rear axle drives.
