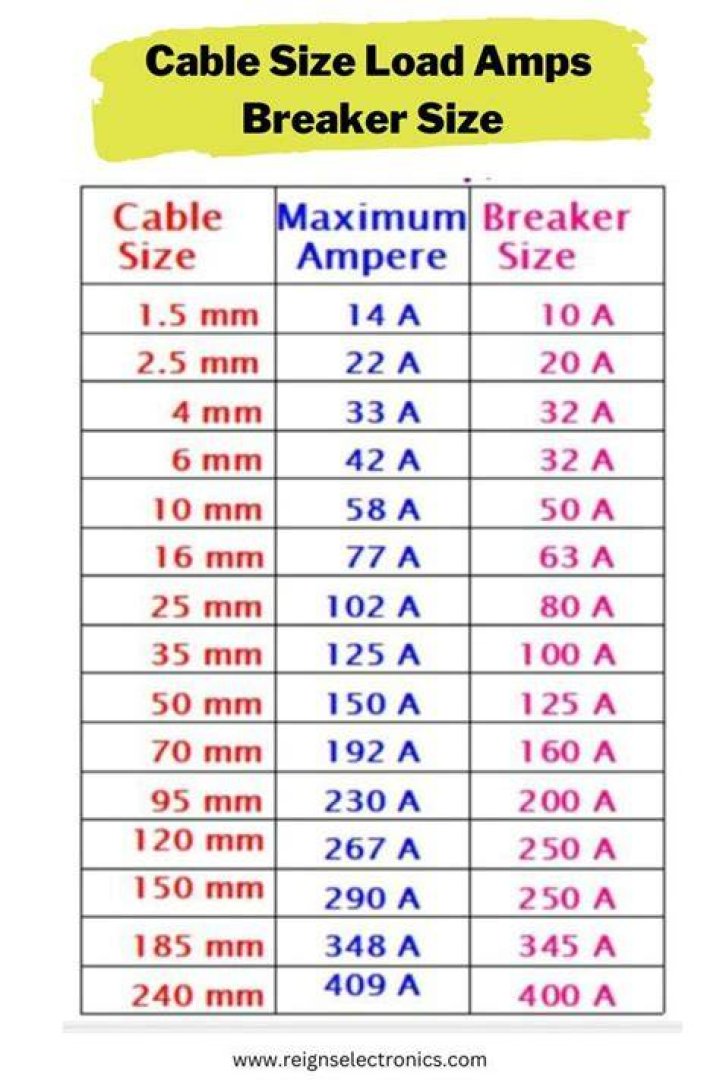

Cable Size Ratings in Amps

How many amps can a 1.5 mm cable carry?

Depending on the installation method used, the 1.5mm cable has a maximum rated capacity of between 14 and 20 amps, so its right on the limit.

How do you calculate current carrying capacity of a cable?

Cable Capacity For Cable Current Capacity = 4X Size of Cable in Sq.mm, Ex. For 2.5 Sq.mm = 4×2.5 = 9 Amp.

Is 1.5 mm wire load capacity?

If the wire is a 1.5 mm flexible strand, it can carry a maximum load of 13 A.

What is 1.0 mm rated cable?

around 14 Amps
The 1.0mm Conductors are Solid , and rated in normal conditions at around 14 Amps, this particular size is common with very Lighting circuits.

How many amps can 6.0 mm cable take?

2 Answers from MyBuilder Electricians. 6mm twin and earth cable (which this almost certainly is) can be backed up by a maximum of a 32a MCB, even lower if other factors are involved. You’ll need that 10mm cable and a 40a MCB unfortunately as your shower is going to draw over 32a.

What is the difference between 1.5 and 2.5 electric cable?

1.5 mm is most commonly used for lighting circuitry and switches. 2.5 mm is most commonly used for ring mains, plug and socket wiring. 4 mm is most commonly used for high power ring mains, plug and socket wiring. 6, 10 and 16 mm are most commonly used for high powered small appliances such as cookers.

What is 1.5 mm wire used for?

How many amps can a 1.0 mm cable take?

The OSG 2008 gives 1.0mm T&E as 16A ref method C (clipped direct). It’s also listed as a standard final circuit protected by a 10A CB/RCBO ref methods 101, A, 100, 102 & C (i must get to grips with these new ref methods ) with a max length of 35m for a B type.
