How many amps is a 30 hp motor?

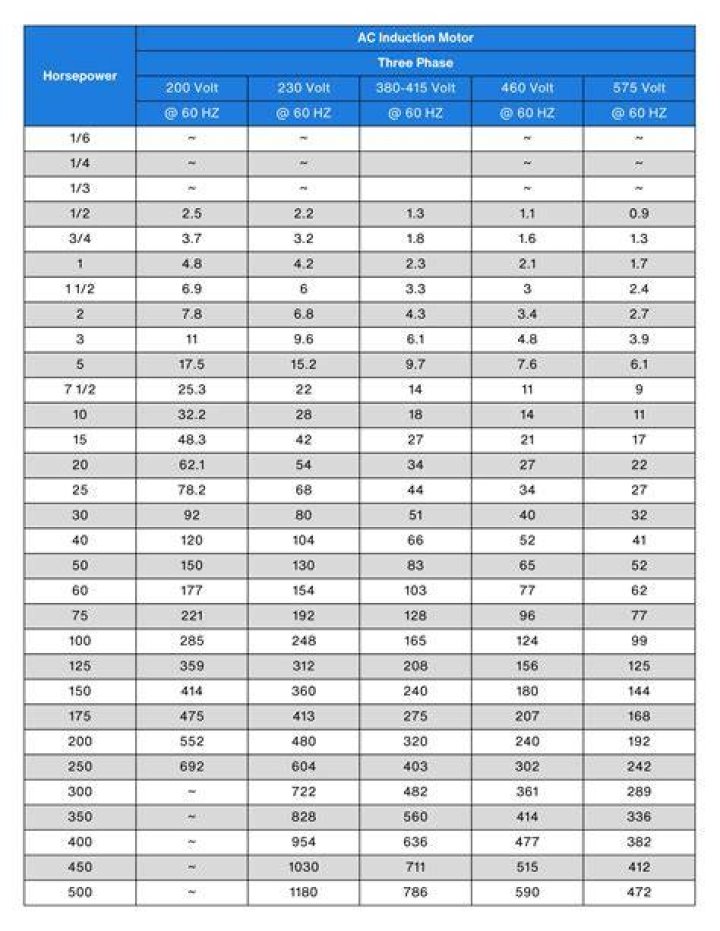

Andrew Davis AC Motor Full Load Amperes
| HP | 200 Volts | 208 Volts |
|---|---|---|
| 30 | 92 | 88 |
| 40 | 120 | 114 |
| 50 | 150 | 143 |
| 60 | 177 | 169 |
How do I convert HP to amps?
How to Convert Horsepower to Amps
- Amps = (Horsepower × 746) ÷ Efficiency ÷ Volts.
- Watts = Horsepower × 746.
- Watts = Wattsη
- Amps = Watts ÷ Volts.
- Amps = HP × 746V × η × PF.
How many amps does a 25 hp motor pull?
AMP DRAW BASED ON HORSEPOWER
| HP | 1 Phase Amps | 3 Phase Amps |
|---|---|---|
| 115 volt | 208 volt | |
| 15 | — | 46.2 |
| 20 | — | 59.4 |
| 25 | — | 74.8 |
What size wire do I need for a 30 hp motor?
| Motor HP | NEMA amps | Phase Wires (AWG) |
|---|---|---|
| 25 | 34 | 6 |
| 30 | 40 | 6 |
| 40 | 52 | 4 |
| 50 | 65 | 4 |
How to calculate hp to amps?
HP to Amps calculator is used to calculate the amperes from horsepower of the motor is known. You can use the Electrical calculator to find the current in single, 2, and 3 phase motor circuits as well as in dc circuits. In DC circuits amps is the ratio between the product of HP * 746 to Voltage times efficiency.
How do you calculate the horsepower of a motor?
When converting to horsepower the efficiency can be accounted for by multiplying the result by the efficiency in decimal form. For example, let’s find the horsepower of a motor drawing 8 amps at 120 volts that is 90% efficient. HP = (Amps × Volts × Efficiency) ÷ 746. HP = (8 A × 120 V × .9) ÷ 746 W. HP = 864 ÷ 746.
How do you calculate the full load amperage of an AC motor?
Motor FLA Calculator. This motor full-load amperage (FLA) calculator allows you to calculate the full-load current of the AC electric motor. Instructions: Select the number of phases from the drop-down list. Enter the motor rated voltage in volts (V) Enter the motor power rating and select the appropriate unit (HP or kW)
How do you calculate the ampere of a three phase motor?
Three Phase AC Motor FLA (Amperes) = (P [HP] × 746) / (V × 1.732 × cos ϕ × η)
