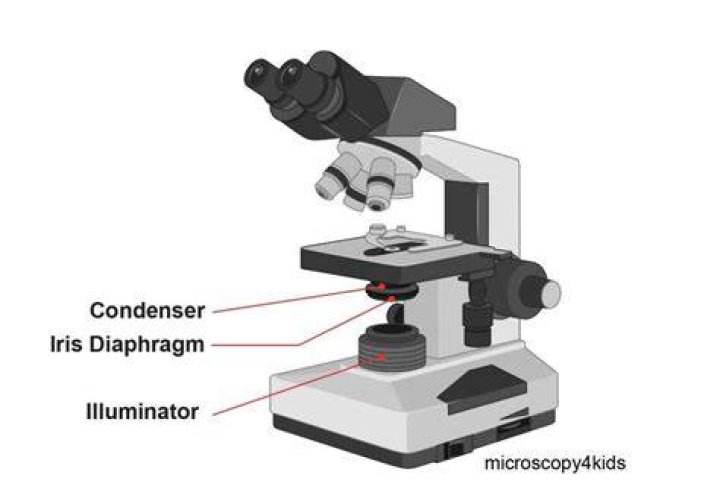

Condenser is used to collect and focus the light from the illuminator on to the specimen. Iris Diaphragm controls the amount of light reaching the specimen. It is located above the condenser and below the stage.

What is the field diaphragm of a microscope for?

The field diaphragm in the base of the microscope controls only the width of the bundle of light rays reaching the condenser. This variable aperture does not affect the optical resolution, numerical aperture, or the intensity of illumination.

Which type of diaphragm are the most commonly used in optical microscopes?

Iris Diaphragm: Found on high power microscopes under the stage, the diaphragm is, typically, a five hole-disc with each hole having a different diameter. It is used to vary the light that passes through the stage opening and helps to adjust both the contrast and resolution of a specimen.

Where is the diaphragm of a microscope?

The diaphragm can be found near the bottom of the microscope, above the light source and the condenser, and below the specimen stage. This can be controlled through a mechanical lever, or with a dial fitted on the diaphragm.

What is diaphragm microscope?

Diaphragm or Iris: Many microscopes have a rotating disk under the stage. This diaphragm has different sized holes and is used to vary the intensity and size of the cone of light that is projected upward into the slide. There is no set rule regarding which setting to use for a particular power.

What are the different types of microscope?

5 Different Types of Microscopes:

• Stereo Microscope.
• Compound Microscope.
• Inverted Microscope.
• Metallurgical Microscope.
• Polarizing Microscope.

What is an iris diaphragm on a microscope?

Medical Definition of iris diaphragm : an adjustable diaphragm of thin opaque plates that can be turned by a ring so as to change the diameter of a central opening usually to regulate the aperture of a lens (as in a microscope)

What type of diaphragm does a microscope have?

Two basic types of diaphragms are utilized in the microscope: the aperture diaphragm, which adjusts the aperture angles in the microscope, and the field diaphragm that controls the size of the field imaged by the instrument.

What are the types of microscope?

Where is the iris diaphragm lever on a microscope?

Iris diaphragm lever- The iris diaphragm lever is the arm attached to the base of the condenser that regulates the amount of light passing through the condenser. The iris diaphragm permits the best possible contrast when vieweing the specimen.

What is function of iris diaphragm?

noun Optics, Photography. a composite diaphragm with a central aperture readily adjustable for size, used to regulate the amount of light admitted to a lens or optical system. Also called iris.

What are the two parts of a light microscope?

The compound microscope uses two lenses to magnify the specimen: the eyepiece and an objective lens.

What is the function of the diaphragm in a microscope?

This diaphragm is also used to control the contrast. As in, how much light and dark differ from each other in an image. The higher the contrast, the more details you can make out between like colors.

What is the principal difference between aperture iris diaphragm and field iris?

What’s the principal difference between aperture iris diaphragm and field iris diaphragm? (Condenser) Aperture Diaphragms are placed at or close to the the back-focal plane of the condenser. They control the numerical aperture of the condenser and their conjugate plane is at infinite.

Why do you close the diaphragm when viewing a specimen?

If you are observing highly transparent specimens, you may need to close the diaphragm more than you typically would to achieve the contrast necessary to see the detail. This diaphragm is located closer to the light source of the microscope.

Can you have high contrast with a field diaphragm?

You cannot fully open your field diaphragm while having high contrast. The more light you are inputting, the less contrast you will get and vice-versa. The less light you put in, the more contrast you get. This is why focusing microscopes can take such a long time.
