1. Solid phases in the Fe-Fe3C phase diagram: Four solid phases, namely α-Ferrite, Austenite, Cementite (Fe3C), and δ-Ferrite. (a) α-Ferrite: The solid solution of carbon in α-iron is called α-ferrite or simply ferrite. Stable between -273 -910 ºC.

What are the solubilities in wt% C of carbon in the α δ and γ forms of iron?

In α-iron the solubility is only 0.04% (ferrite) and in δ-iron the solubility is 0.36%. In the λ-modification with its fcc structure, carbon and iron form an intercalation lattice as a solid solution called austenite with the maximum solubility of 2.06% carbon at 1147 °C. Iron with more carbon is called cast iron.

Which is the hardest phase in iron iron carbide phase diagram?

Cementite or iron carbide, is very hard, brittle intermetallic compound of iron & carbon, as Fe3C, contains 6.67 % C. It is the hardest structure that appears on the diagram, exact melting point unknown.

What are the principal stable phases in the iron carbon phase diagram?

It forms a solid solution with alpha (alpha ferrite), gamma (austenite), and delta (delta ferrite) phases of iron. These are important phases in Fe – Fe3C phase diagram.

What is Fe Fe3C phase diagram?

The Fe-C phase diagram is a fairly complex one, but we will only consider the steel part of the diagram, up to around 7% carbon. ➢ α-ferrite – solid solution of C in BCC Fe • Stable form of iron at room temperature. The maximum solubility of C is 0.022 wt%. Transforms to FCC γ-austenite at 912 °C.

How many phases does an iron-carbon diagram have?

The boundaries, intersecting each other, mark certain regions on the Fe3C diagram. Within each region, a different phase or two phases may exist together. At the boundary, the phase change occurs.

What is the crystal structure of α Fe and ɣ Fe respectively?

The alpha iron (α-Fe) is a body-centered cubic (BCC) and the gamma iron (γ-Fe) is a face-centered cubic (FCC).

What is α ferrite phase in the FE C phase diagram at what temperature it can seen?

Existing at low temperatures and low carbon content, α-ferrite is a solid solution of carbon in BCC Fe. This phase is stable at room temperature. In the graph, it can be seen as a sliver on the left edge with Y-axis on the left side and A2 on the right. This phase is magnetic below 768°C.

Is ferrite harder than martensite?

Ferrite is soft and ductile, while pearlite is hard and brittle. It can be held at an intermediate temperature for various times, in a process called tempering, to reduce strength while vastly improving toughness and ductility. Martensite can be achieved in both alloy and stainless steels.

Which is harder cementite or pearlite?

… leads to the formation of pearlite, which in a microscope can be seen to consist of alternate laths of alpha-ferrite and cementite. Cementite is harder and stronger than ferrite but is much less malleable, so that vastly differing mechanical properties are obtained by varying the amount of carbon.

How many phases are in the iron carbon phase diagram?

Why iron iron carbide equilibrium diagram is not a true equilibrium diagram?

Fe-Fe3C is not considered an equilibrium phase diagram, because Fe3C is behaving metastable in iron. On the other hand, cementite or iron carbide (Fe3C) has 6.67% carbon and is metastable, but its decomposition into graphite is so slow that in practice it can be considered a stable phase.

What are the phases of iron-iron carbide?

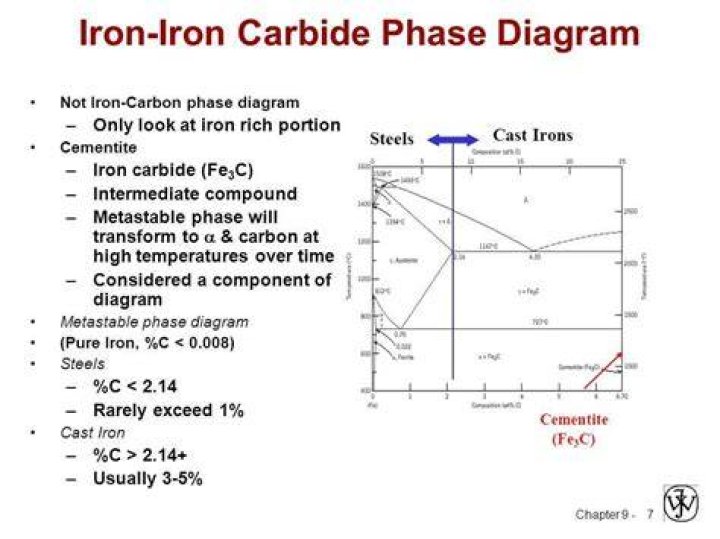

The Iron-Iron carbide (Fe-Fe 3 C) is defined by five individual phases and four invariant reactions. Five phases are- α-ferrite (BCC) Fe-C solid solution, γ-austenite (FCC) Fe-C solid solution, δ -ferrite (BCC) Fe-C solid solution, Fe 3 C (iron carbide) or cementite – an inter- metallic compound and liquid Fe-C solution.

What are the phases of iron carbon equilibrium phase diagram?

DEFINITION OF STRUCTURES Various phases that appear on the Iron- Carbon equilibrium phase diagram are as under: •Ferrite •Pearlite •Austenite •Cementite •Ledeburite •Martensite By: Muhd Hanzelah Zameer Khan 6.

How many crystalline forms of pure iron are there?

Pure iron has two crystalline forms, one BCC, commonly called α – iron which remains stable from low temperatures upto 910°C (1414°F) when it changes to FCC called γ – iron.

What are the phase transformations in cast irons?

Phase transformations in cast irons involve formation of pro-eutectic phase on crossing the liquidus. During the further cooling, liquid of eutectic composition decomposes in to mixture of austenite and cementite, known as ledeburite. On further cooling through eutectoid temperature, austenite converted to pearlite.
