Pneumatic piezometers are used to measure pore water pressure in saturated soils. Applications include: Monitoring pore pressures to determine safe rates of fill or excavation. Monitoring pore water pressures to determine slope stability. Monitoring the effects of dewatering systems used for excavations.

What is the purpose of a piezometer?

Piezometer (Fig. 1.24) is used to measure underground water pressure. It converts water pressure to a frequency signal via a diaphragm and a tensioned steel wire.

How the piezometers are used to measure the spot pressure in a pipeline?

A piezometer is either a device used to measure liquid pressure in a system by measuring the height to which a column of the liquid rises against gravity, or a device which measures the pressure (more precisely, the piezometric head) of groundwater at a specific point.

What is in a piezometer?

Electric piezometers consist of a deflecting diaphragm and a porous filter separated by a small reservoir of water. Deflections of the diaphragm are detected using a vibrating wire or a strain gauge and are converted to an equivalent pressure using a suitable calibration.

Where do you put piezometer?

Locate the precise location of the borehole by surveying, to determine where the borehole/foundation piezometers are to be installed. Using Guargum as a drilling method, drill a hole of 100mm diameter to a depth of around 1 m below the elevation at which the piezometer is to be installed.

What does a vibrating wire piezometer do?

A vibrating wire piezometer is used to measure pore water pressure in the soil, earth/rock-fill foundations and concrete structures. Measurement of pore water pressure is used to detect the level and flow pattern of groundwater.

What is Casagrande piezometer?

The Casagrande piezometer is an instrument used to measure groundwater levels or neutral pressures in soils with different permeability. It is composed by a filter head and one or two PVC tubes which connect the porous element to the surface .

What is in a Piezometer?

What are the types of Piezometer?

Types of Piezometers

• Standpipe Piezometers. The standpipe piezometer is the most basic type of piezometer.
• Vibrating Wire Piezometers. The vibrating wire piezometer is the most commonly deployed type of piezometer.
• Pneumatic Piezometers. The pneumatic piezometer operates by gas pressure.

How do standpipe piezometers work?

The Standpipe Piezometer is capable of measuring the borehole water level or water pressure at the piezometer tip. The water pressure at the filter tip is derived by measuring the height of the water surface in the riser pipe above the piezometer tip.

What are the types of piezometer?

What is a pneumatic piezometer used for?

The pneumatic piezometer is mechanically simple, inexpensive, reliable and robust. It avoids many of the problems associated with electrical instrumentation. The Pneumatic Piezometer is designed for accurately measuring pore water pressures in fully or partially saturated soil and rock.

What are the limitations of piezometers?

What are the Limitations of Piezometers? 1 Use of sensors in saline water is one of the most difficult applications from the point of view of corrosion. Great care… 2 It cannot measure the pressure of the gas or vacuum. A piezometer is ideal to measure only the liquid pressure. More

How does a twin tube piezometer work?

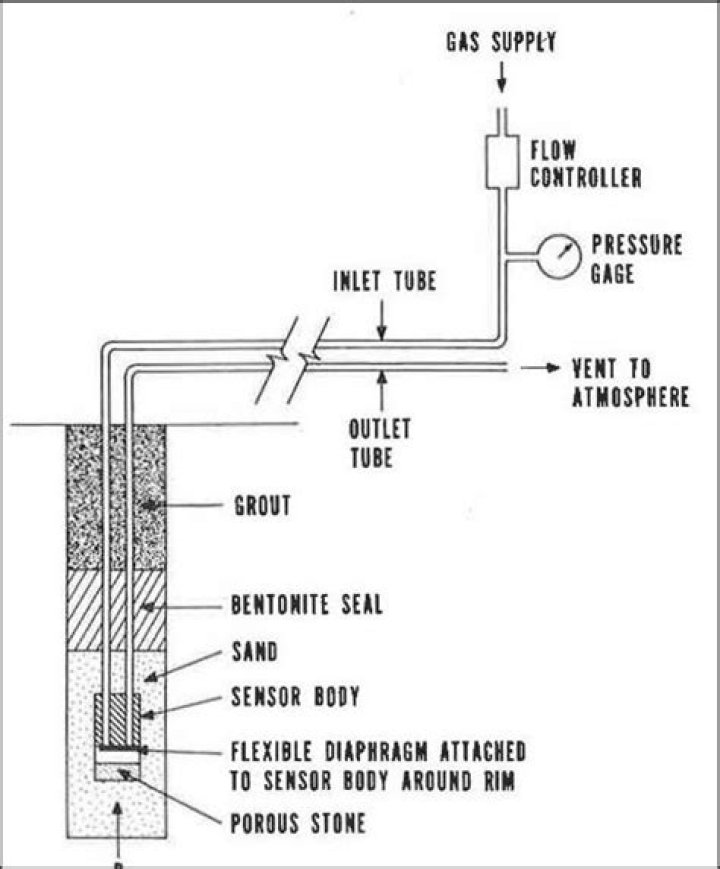

Twin tubes connect the transducer within the piezometer tip to either a pneumatic terminal panel or a readout unit. When pore water pressure is exerted on the diaphragm, reverse pressure is applied until pressure equilibrium is reached, then the readout unit displays the reading. The readout displays engineering-based units.

How do you measure the piezometric level of the ground?

One of the simplest instruments to measure the piezometric level in the ground is an Open Standpipe Piezometer or Casagrande. It is a plastic pipe, with a small diameter (up to 20mm) and a porous section at the bottom.
