Definition. B-stage epoxy resin is a descriptive term used to define a one component epoxy system, using a latent (low reactivity) curing agent. This unique product can be partially cured (sometimes referred to as “pre-dried”), as an initial stage after being applied onto one substrate/surface.

What is b stage adhesive?

A B-stage epoxy is a system wherein the reaction between the resin and the curing agent/hardener is not complete. Due to this, the system is in a partially cured stage. In many cases, B stage epoxies help to increase the performance of the product and decrease the overall manufacturing/production cost.

What is resin B?

B-stage epoxy films are partially cured versions of traditional epoxy resins. B-stage films provide the same function as traditional heat-curing epoxies. They are typically provided as a film sheet or more often in precut shapes and forms with release liners.

What is the difference between epoxy A and B?

The Part A is the resin side and the Part B is the hardener. Epoxy resins are normally clear to slightly amber, high viscosity liquids which may be filled with metallic or mineral fillers to improve performance and lower cost.

How should CF epoxy prepregs be stored?

The prepreg should be contained in a moisture impermeable wrapping (preferably also airtight) prior to freezing.

What is pre preg laminating?

“Prepreg” is the common term for a reinforcing fabric which has been pre-impregnated with a resin system. As a result, the prepreg is ready to lay into the mold without the addition of any more resin. In order for the laminate to cure, it is necessary to use a combination of pressure and heat.

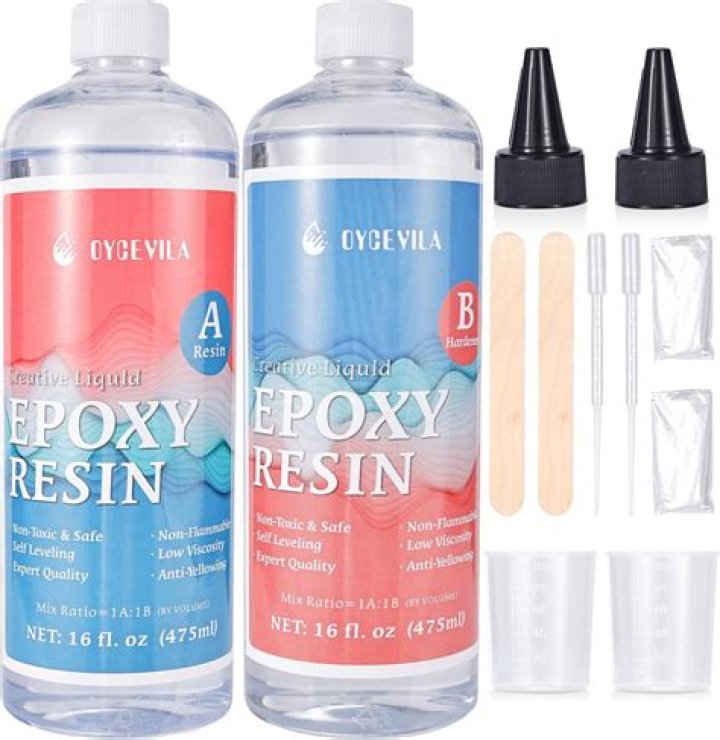

Is Part A or B the hardener for epoxy?

Two part epoxy compounds are normally supplied in an A – B mix or kit. The Part A is the resin side and the Part B is the hardener. Epoxy resins are normally clear to slightly amber, high viscosity liquids which may be filled with metallic or mineral fillers to improve performance and lower cost.

What is epoxy resin A and B?

Epoxy resin systems consist of two parts, an “A” and a “B” side. The B side, also known as the “hardener”, is the epoxy curing agent; the curing agent is responsible for reacting with the epoxy groups contained in the epoxy resin A side. Reaction of curing agents with epoxy resins results in hard, thermoset materials.

What is pre-preg material?

Pre-preg is a composite material made from “pre-impregnated” fibers and a partially cured polymer matrix, such as epoxy or phenolic resin, or even thermoplastic mixed with liquid rubbers or resins. Hence, composite structures built of pre-pregs will mostly require an oven or autoclave to cure.

How is pre-preg made?

Both fabric and unidirectional prepregs can be produced using the hot melt process. The reinforcement material and the resin are allowed to interact in the prepreg machine. On application of pressure and heat, the resin is impregnated into the fibre resulting in the final prepreg, which is ultimately wound on a core.

What is B-staged epoxy or epoxy film?

This is known as b-staged epoxy or epoxy film. There are many reasons to select a film adhesive (we’ll get to those shortly), but first a quick primer. Most commonly, b-stage refers to an epoxy that has been heat cured for a short period of time and then cooled (quenched) to prevent complete polymerization of the resin system.

What are the advantages of B stage epoxies?

In many cases, B stage epoxies help to increase the performance of the product and decrease the overall manufacturing/production cost. Also, B-stage systems can be more convenient to use than a two part epoxy system in many applications. They can be deposited on a substrate and do not have to be cured immediately.

What is the temperature range for epoxy film?

Serviceable from -100°F to +500°F. High performance, thermally conductive, electrically insulative, resin based epoxy adhesive film system. Offers superior mechanical strength, convenient handling, good storage stability and fast cures at moderate temperatures.
