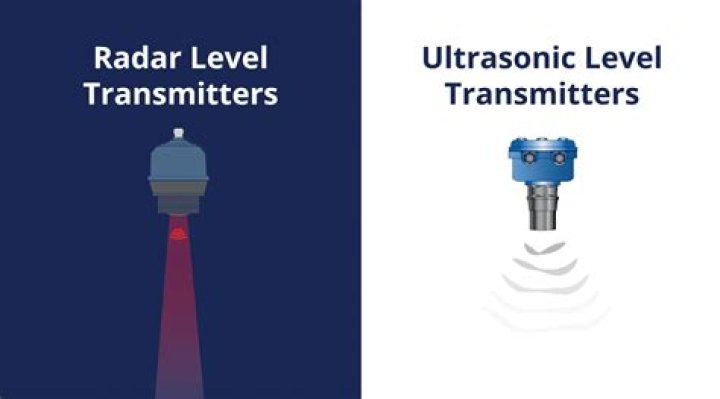

Radar and ultrasonic instruments operate similarly. All radars, including 80 GHz radar sensors, emit radio microwaves, while ultrasonic transmitters use sound waves. Radar. Radar microwaves are electromagnetic waves, which means the signal doesn’t require a medium – it can travel in a vacuum.

What is guided wave radar?

Guided wave radar is based on microwave technology. The device sends a low energy microwave pulse down a probe. When the pulse hits the media, a significant proportion of the energy is reflected back up the probe to the device. The level is directly proportional to the time-domain reflectometry.

How are silos measured?

To improve measurements in silos, vendors developed 3d level scanners. The 3D level scanner sends low-frequency acoustic waves to multiple points on the product in the silo. The product reflects the waves back to the scanner’s three antennas.

How do you measure bulk solids?

Various technologies available for the measurement of level (or quantity) of bulk solids stored in silos, bins or hoppers are listed below:

1. Weight & Cable Systems.
2. Ultrasonic Systems.
3. Guided Wave Radar Systems.
4. Thru-Air Radar Systems.
5. Laser Detectors.
6. Load Cells.
7. Strain Gagues.

What is the difference between ultrasound and ultrasonic waves?

2 Answers. Ulrasound is sound that have high pitched for the human ear to hear and is out of human audible range. Ultrasonic is an adjective which is used to describe a sound as being an ultrasound.

How does a guided wave radar work?

What is the difference between radar and guided wave radar level transmitter?

Guided Wave Radar (GWR) uses a probe to measure to guide high frequency, electromagnetic waves as they travel down from a transmitter to the media being measured. Non-Contacting Radar sends down an electromagnetic wave through the air, it then reflects off the media and returns back to the device.

How is grain measured in silo?

To measure the level of cereals in your silo, hopper or other container, you must place the detector at the maximum fill level you have chosen. When the silo is going to fill up, a cereal slope will be formed and that will push the tilt level switch. This one will tilt and will activate electrovanes, automatons.

How does a Bindicator work and what are they used for?

Bindicator® is a full service supplier of point and continuous level sensors for industrial applications. Since 1936, our bin level indicators have been preventing overflow spills, controlling surge bins, detecting plugged chutes and providing on/off control of pumps and conveyors in the dry bulk industry.

What is ultrasonic waves used for?

Ultrasonic devices are used to detect objects and measure distances. Ultrasound imaging or sonography is often used in medicine. In the nondestructive testing of products and structures, ultrasound is used to detect invisible flaws.

What is meant by ultrasonic waves?

Ultrasonic wave is defined as “inaudible sound with high frequency for human” the frequency of which generally exceeds 20 kHz. These days, sound wave which is not intended to be heard is also called ultrasonic wave.

What is the difference between ultrasonic and guided wave radar level transmitter?

Guided wave radar level transmitter works well in temperature up to 315°C. Accuracy: Changes in density, acidity, viscosity do not affect the accuracy of radar level transmitters. Thus, radar transmitters are more precise than ultrasonic transmitters. For storage tank level measurement, high accuracy radar transmitters are used.

What is guided wave radar (GWR)?

Guided Wave Radar (GWR) is a contacting level measurement method that uses a probe to guide high frequency, electromagnetic waves as they travel down from a transmitter to the media being measured.

Is an ultrasonic sensor better than a radar level sensor?

Because radar level sensors use radio microwaves, the noise has no effect on the measurement. In most level measurement applications, users would be wise to choose an 80 GHz radar over an ultrasonic transmitter. This doesn’t mean ultrasonic sensors are obsolete by any means.

How does an ultrasonic level transmitter work?

Unlike radar level transmitters, ultrasonic level transmitters use a non-contact level measurement technique. The transmitter uses a piezo-electric transducer to emit mechanical waves. They operate by sending a sound wave to the process media that is being measured.
